2009 Edition Part 2 Figure 2E-24. Supplemental Guide Sign for a Multi-Exit Interchange

Full-size image of Figure 2E-24

Figure 2E-24. Supplemental Guide Sign for a Multi-Exit Interchange

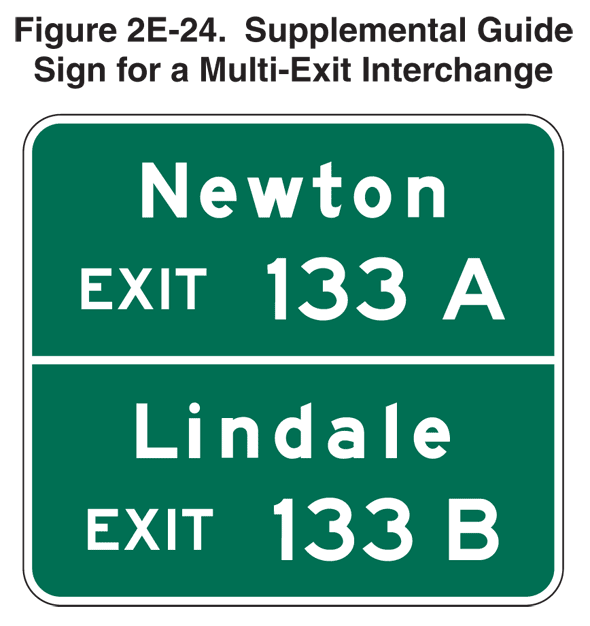

This figure shows a supplemental guide sign for a multi-exit interchange.

This sign is shown as a green square that is composed of two vertically arrayed panels, each with its own border on three sides of each panel and with a shared border on the fourth side, where the two panels meet. The sign is shown with white lettering and white borders.

The top panel of the sign is shown with the word "Newton" on the top line and the words "EXIT 133 A" on the bottom line. Underneath the common border, the bottom panel is shown with the word "Lindale" on the top line and the words "EXIT 133 B" on the bottom line.
