2009 Edition Part 2 Figure 2E-28. Exit Gore Signs

Full-size image of Figure 2E-28

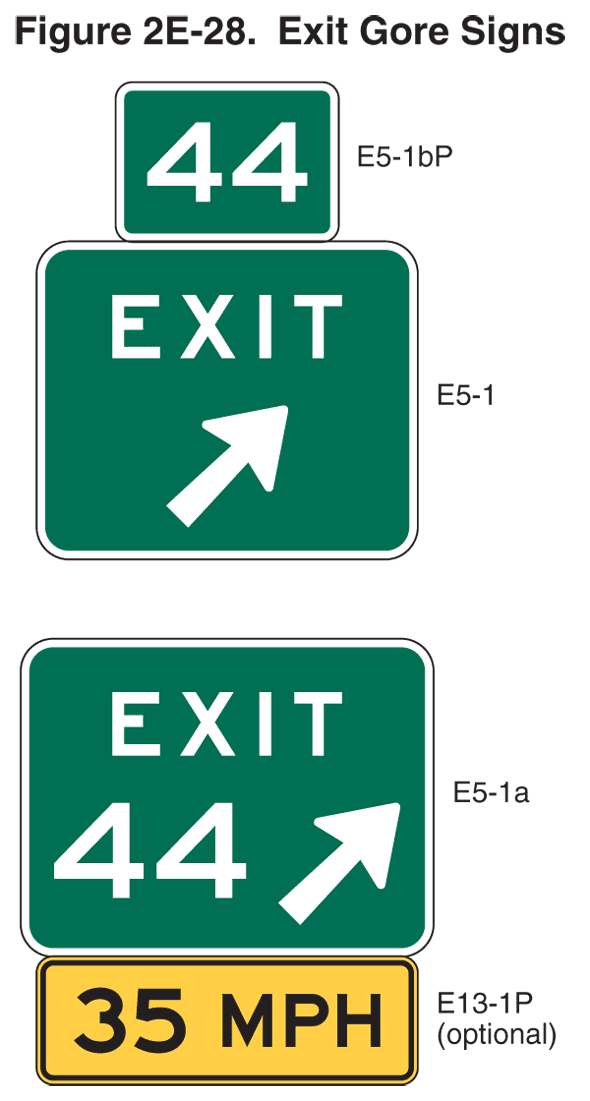

Figure 2E-28. Exit Gore Signs

This figure shows four exit gore signs in two sign assemblies.

The first sign assembly is shown composed of a plaque labeled E5-1bP mounted above a sign labeled E5-1. E5-1bP is shown as a horizontal rectangular green sign with white letters and border and the numerals "44." E5-1 is shown as a square green sign with white lettering and border and with the word "EXIT" on the top line and a diagonal white arrow pointing up and to the right on the bottom line.

The second sign assembly is shown composed of a sign labeled E5-1a mounted above a panel labeled E13-1P (optional). E5-1a is shown as a square green sign with white lettering and border and with the word "EXIT" on the top line and the numerals "44" to the left of a diagonal white arrow pointing up and to the right on the bottom line. E13-1P is shown as a horizontal rectangular yellow sign with black lettering and border and is shown with the words "35 MPH."
