2009 Edition Part 2 Figure 2E-32. Community Interchanges Identification Sign

Full-size image of Figure 2E-32

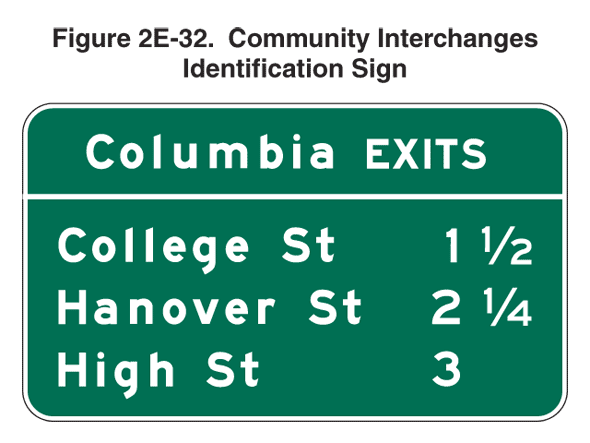

Figure 2E-32. Community Interchanges Identification Sign

This figure shows a community interchange identification sign.

The sign is shown as a horizontal rectangular green sign with white letters and a white border. At the top of the sign, the words "Columbia EXITS" are shown on one line. Underneath these words, a horizontal white line extends from the left border to the right border, separating the sign into two horizontal portions. In the lower portion of the sign, the words "College St" are shown to the left of the numerals "1 1/2" on the top line. On the middle line, the words "Hanover St" are shown to the left of the numerals "2 1/4." On the bottom line, the words "High St" are shown to the left of the numeral "3." The three numerals are shown with the final digit aligned vertically near the right edge of the sign.
