2009 Edition Part 9 Figure 9C-2. Examples of Center Line Markings for Shared-Use Paths

Full-size image of Figure 9C-2

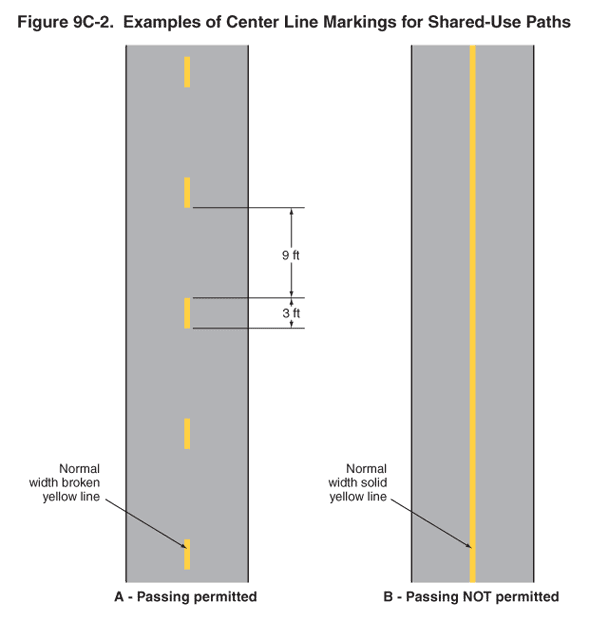

Figure 9C-2. Examples of Center Line Markings for Shared-Use Paths

This figure illustrates two examples of centerline markings for a shared-use path, labeled A and B.

A is labeled "Passing permitted." It shows a vertical two-lane shared-use path. A centerline of a normal width broken yellow line is shown marked on the pavement, separating the two lanes. The yellow line segments are shown as a dimension of 3 ft long. The distance between the edges of two line segments is shown as a dimension of 9 ft.

B is labeled "Passing NOT permitted." It shows a vertical two-lane shared-use path. A single centerline of a normal width solid yellow line is shown marked on the pavement, separating the two lanes.
