2009 Edition Part 9 Figure 9C-9. Shared Lane Marking

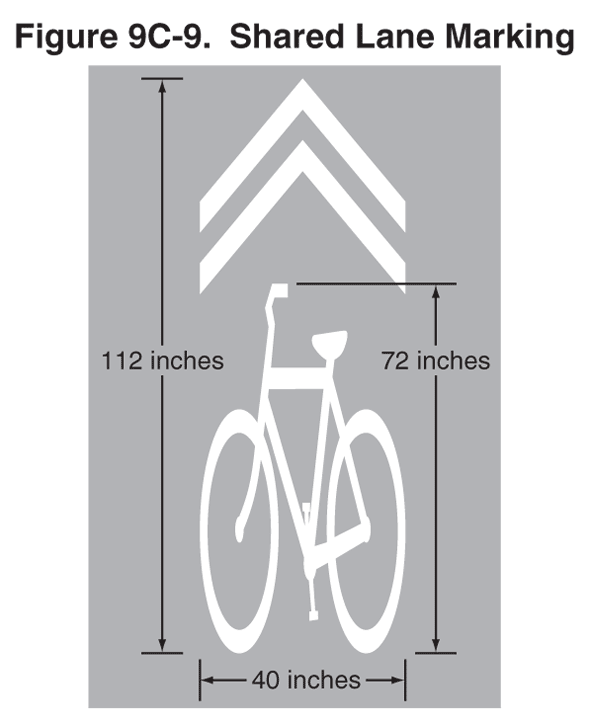

Figure 9C-9. Shared Lane Marking
This figure illustrates an example of a lane marked for bicycle shared use.
The figure shows a vertical symbol of a bicycle with a white "v" shaped marking inside a second "v" shape above the symbol. The points of the "v" shaped markings face up. The distance from the top of the topmost "v" shaped marking to the bottom of the bicycle symbol is shown as a dimension of 112 inches. The overall length of the symbol is shown as a dimension of 72 inches. The overall width of the symbol is shown as a dimension of 40 inches.
