2009 Edition Part 2 Figure 2B-6. Center and Reversible Lane Control Signs and Plaques

Full-size image of Figure 2B-6

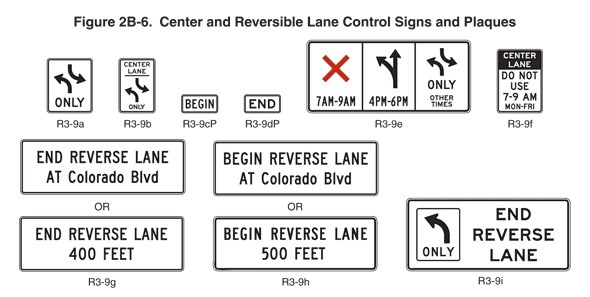

Figure 2B-6. Center and Reversible Lane Control Signs and Plaques

This figure shows nine center and reversible lane control signs and plaques.

R3-9a is shown as a vertical rectangular white sign with a black border and legend. Two opposing curving arrows are shown, one pointing upward and to the left, and one pointing downward and to the right. The bases of the shafts of the two arrows are directly in line with each other in the vertical axis. The word "ONLY" in black is shown centered below the arrows.

R3-9b is shown as a vertical rectangular white sign with a black border and legend. The words "CENTER LANE" in black are shown on two lines above a short horizontal black line. Below the line, two opposing curving arrows are shown, one pointing upward and to the left, and one pointing downward and to the right. The bases of the shafts of the two arrows are directly in line with each other in the vertical axis. The word "ONLY" in black is shown centered below the arrows.

R3-9cP is shown as a horizontal rectangular white supplemental plaque with a black border and the word "BEGIN" in black.

R3-9dP is shown as a horizontal rectangular white supplemental plaque with a black border and the word "END" in black.

R3-9e is shown as a horizontal rectangular white sign with a black border. The sign is shown divided horizontally into thirds by two vertical black lines that extend from the upper to lower border. On the left third of the sign, a large red "X" is shown, and the legend "7-9 AM" in black is shown below the "X". On the middle third of the sign, a vertical black arrow is shown with two arrowheads: one pointing upward and one on the left curving up and to the left. The legend "4-6 PM" in black is shown the arrow. On the right third of the sign, two opposing curving arrows are shown, one pointing upward and to the left, and one pointing downward and to the right. The bases of the shafts of the two arrows are directly in line with each other in the vertical axis. The word "ONLY" in black is shown centered below the arrows. The words "OTHER TIMES" in black are shown on two lines below the word "ONLY".

R3-9f is shown as a vertical rectangular white sign with a black border. A black panel is shown on the top third of the sign, with the words "CENTER LANE" in white shown on two lines. Below this, the words "DO NOT USE 7-9 AM MON-FRI" in black are shown on four lines.

R3-9g is shown as a horizontal rectangular white sign with a black border and legend. The words "END REVERSE LANE AT Colorado Blvd" in black are shown on two lines. Below this sign, the word "OR" is shown above a horizontal rectangular white sign with a black border and legend. The words "END REVERSE LANE 400 FEET" in black are shown on two lines.

R3-9h is shown as a horizontal rectangular white sign with a black border and legend. The words "BEGIN REVERSE LANE AT Colorado Blvd" in black are shown on two lines. Below this sign, the word "OR" is shown above a horizontal rectangular white sign with a black border and legend. The words "BEGIN REVERSE LANE 500 FEET" in black are shown on two lines.

R3-9i is shown as a horizontal rectangular white sign with a black border and legend. On the left, a smaller vertical rectangular white sign is shown with a black border and black legend. A vertical black arrow is shown curving up and to the left above the word "ONLY" in large letters. To the right of this sign, the words "END REVERSE LANE" in black are shown on three lines.
