2009 Edition Part 2 Figure 2C-12. Supplemental Warning Plaques
Figure 2C-12. Supplemental Warning Plaques

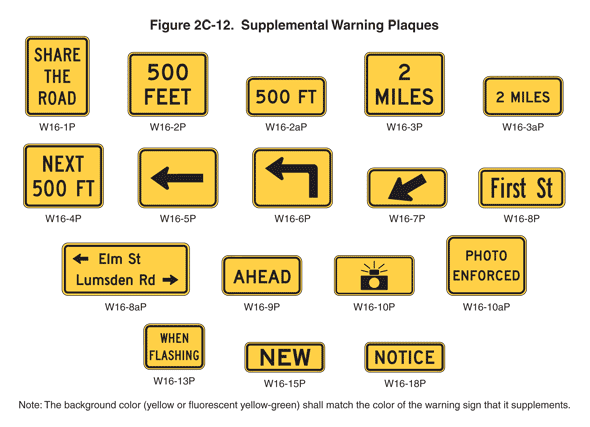

This figure shows 17 supplemental warning plaques. They are yellow with black borders and legends. A note states: "The background color (yellow or fluorescent yellow-green) shall match the color of the warning sign that it supplements."
W16-1P is shown as a vertical rectangular plaque with the words "SHARE THE ROAD" on three lines.
W16-2P is shown as a horizontal rectangular plaque with the words "500 FEET" on two lines.
W16-2aP is shown as a horizontal rectangular plaque with the words "500 FT" on one line.
W16-3P is shown as a horizontal rectangular plaque with the words "2 MILES" on two lines.
W16-3aP is shown as horizontal rectangular plaque with the words "2 MILES" on one line.
W16-4P is shown as a horizontal rectangular plaque with the words "NEXT 500 FT" on two lines.
W16-5P is shown as a horizontal rectangular plaque with a left-pointing horizontal black arrow.
W16-6P is shown as a horizontal rectangular plaque with a right-angled black arrow pointing up and to the left.
W16-7P is shown as a horizontal rectangular plaque with a diagonal black arrow pointing down and to the left.
W16-8P is shown as a horizontal rectangular plaque with the words "First St."
W16-8aP is shown as a horizontal rectangular plaque with a left-pointing horizontal arrow to the left of the words "Elm Street" on the top line and the words "Lumsden Rd" to the left of a right-pointing arrow on the bottom line.
W16-9P is shown as a horizontal rectangular plaque with the word "AHEAD."
W16-10P is shown as a horizontal rectangular plaque with a symbol of a head-on view of a camera.
W16-10aP is shown as a horizontal rectangular plaque with the words "PHOTO ENFORCED" on two lines.
W16-13P is shown as a horizontal rectangular plaque with the words "WHEN FLASHING" on two lines.
W16-15P is shown as a horizontal rectangular plaque with the word "NEW."
W16-18P is shown as a horizontal rectangular plaque with the word "NOTICE."
