2009 Edition Part 2 Figure 2D-21. Crossover, Truck Lane, and Slow Vehicle Signs

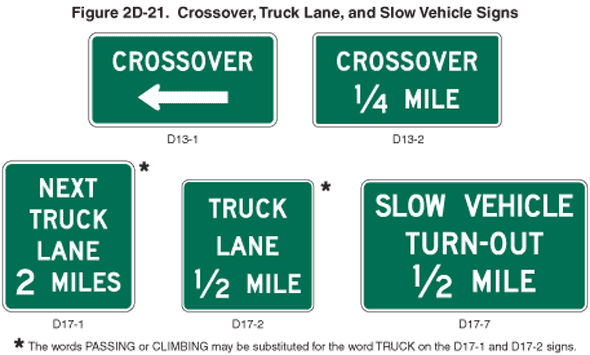

Figure 2D-21. Crossover, Truck Lane, and Slow Vehicle Signs
This figure shows five crossover, truck lane, and slow vehicle signs.
D13-1 is shown as a horizontal rectangular green sign with a white border and the word "CROSSOVER" in white above a left-pointing horizontal white arrow.
D13-2 is shown as a horizontal rectangular green sign with a white border and the word "CROSSOVER" in white on the top line and the words "1/4 MILE" in white on the bottom line.
D17-1 is shown as a vertical rectangular green sign with a white border and the words "NEXT TRUCK LANE 2 miles" in white on four lines. A note states: "The words PASSING or CLIMBING may be substituted for the word TRUCK on the D17-1 and D17-2 signs."
D17-2 is shown as a vertical rectangular green sign with a white border and the words "TRUCK LANE 1/2 miles" in white on three lines. A note states: "The words PASSING or CLIMBING may be substituted for the word TRUCK on the D17-1 and D17-2 signs."
D17-7 is shown as a horizontal rectangular green sign with a white border and the words "SLOW VEHICLE" in white on the top line, the word "TURN-OUT" in white on the middle line, and the words "1/2 MILE" in white on the bottom line.
