2009 Edition Part 2 Figure 2E-13. EXIT ONLY and LEFT Sign Panels

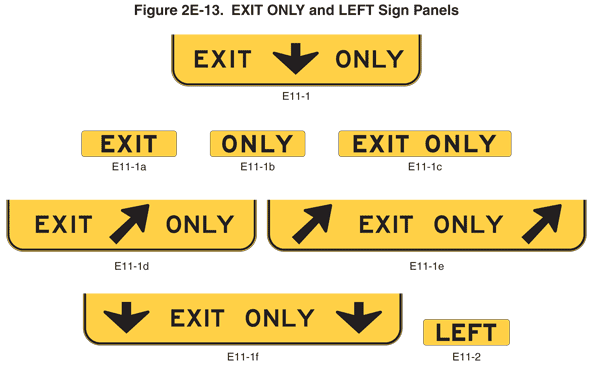

Figure 2E-13. EXIT ONLY and LEFT Sign Panels
This figure shows nine different EXIT ONLY and LEFT sign panels. Each of these is shown as a horizontal rectangular yellow panel with black lettering:
- E11-1 is shown as a panel with a black border on the left, bottom, and right sides. It shows the word "EXIT" and the word "ONLY" separated by a downward-pointing vertical black arrow with a short shaft, all on one line.
- E11-1a is shown as a panel with the word "EXIT."
- E11-1b is shown as a panel with the word "ONLY."
- E11-1c is shown as a panel with the words "EXIT ONLY" on a single line.
- E11-1d is shown as a panel with a black border on the left, bottom, and right sides. It shows the word "EXIT" and the word "ONLY" separated by a short diagonal black arrow pointing up and to the right, all on one line.
- E11-1e is shown as a panel with a black border on the left, bottom, and right sides. It shows the words "EXIT ONLY" between two short diagonal black arrows pointing up and to the right, all on one line.
- E11-1f is shown as a panel with a black border on the left, bottom, and right sides. It shows the words "EXIT ONLY" between two short vertical downward-pointing black arrows, all on one line.
- E11-2 is shown as a panel with the word "LEFT."
