2009 Edition Part 2 Figure 2E-25. Supplemental Guide Sign for a Park – Ride Facility
Figure 2E-25. Supplemental Guide Sign for a Park – Ride Facility

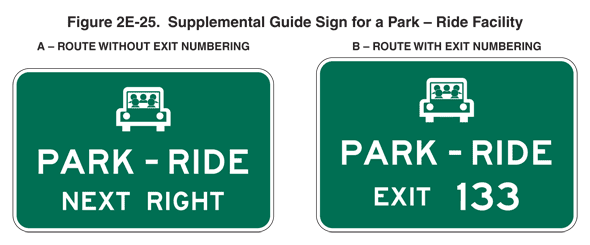

This figure shows two supplemental guide signs for a Park – Ride facility.
The first sign is labeled "A – Route without exit numbering." It is shown as a horizontal rectangular green sign with a white border and legend. A white outline symbol of a vehicle carrying five persons is shown on the top line, the words "PARK - RIDE" are shown on the middle line, and the words "NEXT RIGHT" are shown on the bottom line.
The second sign is labeled "B – Route with exit numbering." It is shown as a horizontal rectangular green sign with a white border and legend. A white outline symbol of a vehicle carrying five persons is shown on the top line, the words "PARK - RIDE" are shown on the middle line, and the words "EXIT 133" are shown on the bottom line.
