2009 Edition Part 2 Figure 2I-7. Examples of Tourist Information and Welcome Center Signs

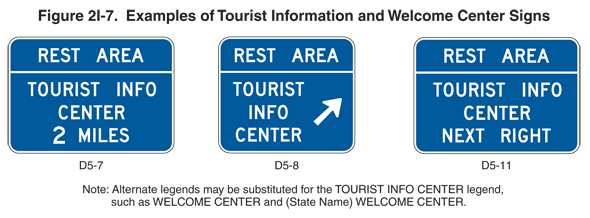

Figure 2I-7. Examples of Tourist Information and Welcome Center Signs
This figure shows three examples of tourist information and welcome center signs. They are shown as horizontal rectangular blue signs with white borders and lettering.
A note states: "Alternate legends may be substituted for the TOURIST INFO CENTER legend, such as WELCOME CENTER and (State Name) WELCOME CENTER."
D5-7 is shown with the words "REST AREA" on the top line above a horizontal dividing line, the words "TOURIST INFO" on the second line, the word "CENTER" on the third line, and the words "2 MILES" on the bottom line.
D5-8 is shown with the words "REST AREA" on the top line above a horizontal dividing line, and the words "TOURIST INFO CENTER" on three lines to the left of a short diagonal arrow pointing up and to the right.
D5-11 is shown with the words "REST AREA" on the top line above a horizontal dividing line, the words "TOURIST INFO" on the second line, the word "CENTER" on the third line, and the words "NEXT RIGHT" on the bottom line.
