2009 Edition Part 3 Figure 3B-23. Example of Elongated Letters for Word Pavement Markings

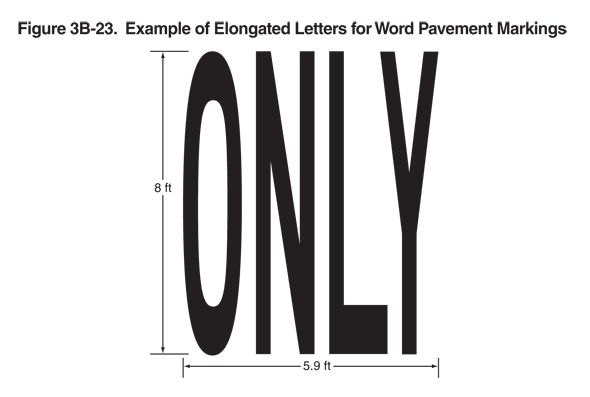

Figure 3B-23. Example of Elongated Letters for Word Pavement Markings
This figure shows an example of elongated letters for word pavement markings.
In this example, the word "ONLY" is shown in elongated black letters. The height is shown as 8 ft, and the width is shown as 5.9 ft.
