Figure 6F-5. Exit Open and Closed and Detour Signs

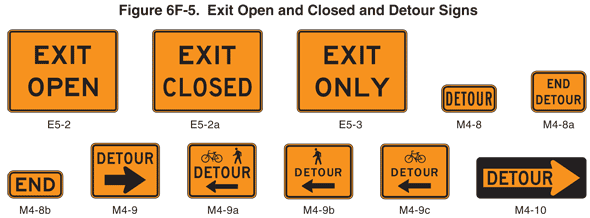

This figure shows 11 exit open and closed and detour signs. They are horizontal rectangular signs.
E5-2 is shown as an orange sign with a black border and legend. It shows the words "EXIT OPEN" on two lines.
E5-2a is shown as an orange sign with a black border and legend. It shows the words "EXIT CLOSED" on two lines.
E5-3 is shown as an orange sign with a black border and legend. It shows the words "EXIT ONLY" on two lines.
M4-8 is shown as an orange sign with a black border and legend. It shows the word "DETOUR."
M4-8a is shown as an orange sign with a black border and legend. It shows the words "END DETOUR" on two lines.
M4-8b is shown as an orange sign with a black border and legend. It shows the word "END."
M4-9 is shown as an orange sign with a black border and legend. It shows the word "DETOUR" above a horizontal right-pointing arrow.
M4-9a is shown as an orange sign with a black border and legend. It shows symbols for a left-facing bicycle and left-facing walking person on the top line, the word "DETOUR" on the middle line, and a horizontal left-pointing arrow on the bottom line.
M4-9b is shown as an orange sign with a black border and legend. It shows a symbol for a left-facing walking person on the top line, the word "DETOUR" on the middle line, and a horizontal left-pointing arrow on the bottom line.
M4-9c is shown as an orange sign with a black border and legend. It shows a symbol for a left-facing bicycle on the top line, the word "DETOUR" on the middle line, and a horizontal left-pointing arrow on the bottom line.
M4-10 is shown as a black sign with orange border. It shows the word "DETOUR" in black superimposed on a large right-pointing orange arrow.
