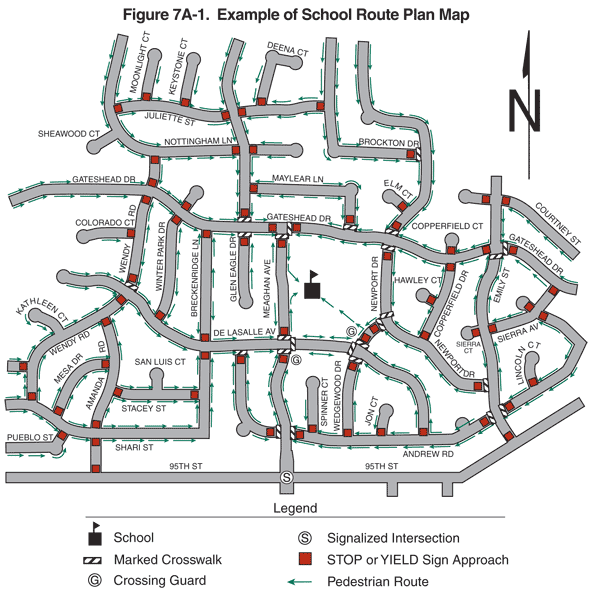

2009 Edition Part 7 Figure 7A-1. Example of School Route Plan Map
Figure 7A-1. Example of School Route Plan Map
This figure illustrates a school route plan map.
The figure shows an overhead view of a neighborhood map composed of horizontal and vertical streets, traffic controls, pedestrian routes, and a school. Each street is named, such as Gateshead Drive, 95th Street, and Meaghan Avenue.
A legend shows symbols for a school, marked crosswalk, crossing guard, signalized intersection, STOP or YIELD sign approach, and pedestrian route. A compass arrow points north.
The main street on the south side of the neighborhood is 95th Street, which has the only signalized intersection. Other intersections have one or more STOP or YIELD sign approaches. Marked crosswalks are shown at many of the intersections, and two crosswalks near the school show crossing guards. Green arrows show the pedestrian routes from every street in the neighborhood to the school.
