2009 Edition Part 9 Figure 9B-8. Example of Mode-Specific Guide Signing on a Shared-Use Path

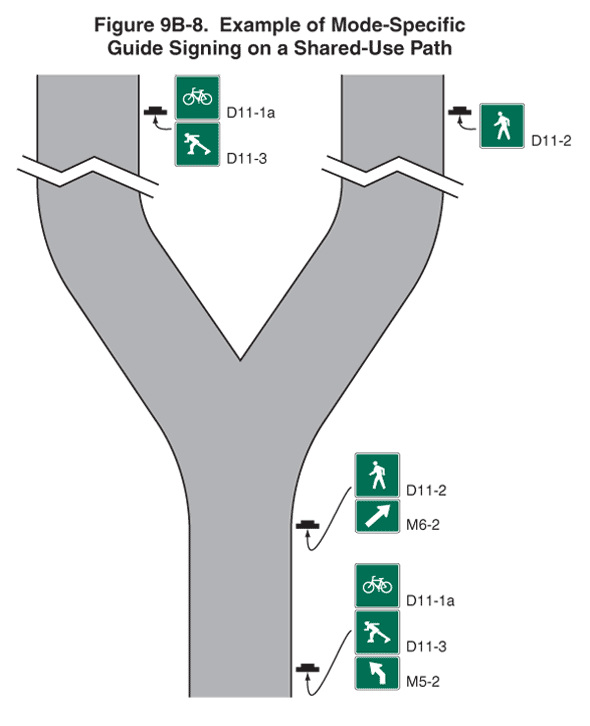

Figure 9B-8. Example of Mode-Specific Guide Signing on a Shared-Use Path
This figure illustrates an example of guide signing on a shared-use path for different modes of travel.
The figure shows a vertical Y-shaped path. At the base of the figure and to the right of the path, a sign assembly is shown composed of a D11-1a sign with a bicycle symbol mounted above a D11-3 sign with a roller-skating symbol mounted above an M5-2 sign with a vertical arrow bent at a 45-degree angle and pointing up and to the left. Just in advance of the "Y" branch and to the right of the path, a sign assembly is shown composed of a D11-2 sign with a walking person symbol mounted above an M6-2 sign with a diagonal arrow pointing up and to the right.
Just beyond this sign assembly, the path branches into a "Y." Along the left branch and to the right of the path, a sign assembly is shown composed of a D11-1a sign with a bicycle symbol mounted above a D11-3 sign with a roller-skating symbol. Along the right branch and to the right of the path, a D11-2 sign is shown with a walking person symbol.
