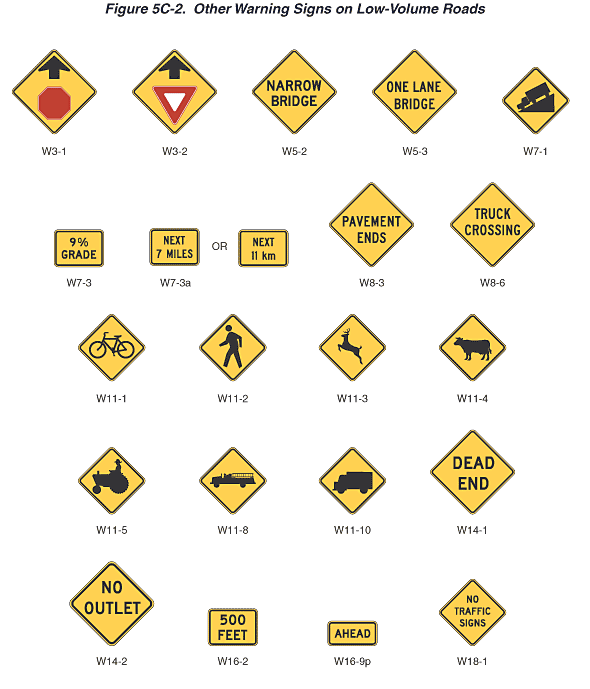

Figure 5C-2. Other Warning Signs on Low-Volume Roads
This figure shows 22 other warning signs for low-volume roads. They are shown as diamond-shaped or horizontal rectangular yellow signs with black borders and legends.
W3-1 is shown as a diamond-shaped sign with an upward-pointing black arrow above an octagonal red Stop sign symbol.
W3-2 is shown as a diamond-shaped sign with an upward-pointing black arrow above a downward-pointing equilateral triangular red and white Yield sign symbol.
W5-2 is shown as a diamond-shaped sign with the words "NARROW BRIDGE" on two lines.
W5-3 is shown as a diamond-shaped sign with the words "ONE LANE BRIDGE" on two lines.
W7-1 is shown as a diamond-shaped sign with a symbol of a truck pointing to the left and down on a ramp that slopes up from the left to right.
W7-3 is shown as a horizontal rectangular sign with the words "9% GRADE" on two lines.
W7-3a is shown as a horizontal rectangular sign with the words "NEXT 7 MILES" on two lines. To the right of this sign, the word "OR" is shown and another sign. This is shown as the same sign except the words "11 km" replace the words "7 MILES."
W8-3 is shown as a diamond-shaped sign with the words "PAVEMENT ENDS" on two lines.
W8-6 is shown as a diamond-shaped sign with the words "TRUCK CROSSING" on two lines.
W11-1 is shown as a diamond-shaped sign with a symbol of a left-facing bicycle.
W11-2 is shown as a diamond-shaped sign with a symbol of a left-facing walking person.
W11-3 is shown as a diamond-shaped sign with a symbol of a left-facing deer.
W11-4 is shown as a diamond-shaped sign with a symbol of a left-facing cow.
W11-5 is shown as a diamond-shaped sign with a symbol of a left-facing tractor and driver.
W11-8 is shown as a diamond-shaped sign with a symbol of a left-facing fire engine.
W11-10 is shown as a diamond-shaped sign with a symbol of a left-facing box truck.
W14-1 is shown as a diamond-shaped sign with the words "DEAD END" on two lines.
W14-2 is shown as a diamond-shaped sign with the words "NO OUTLET" on two lines.
W16-2 is shown as a horizontal rectangular sign with the words "500 FEET" on two lines.
W16-9p is shown as a horizontal rectangular plaque with the word "AHEAD."
W18-1 is shown as a diamond-shaped sign with the words "NO TRAFFIC SIGNS" on three lines.
