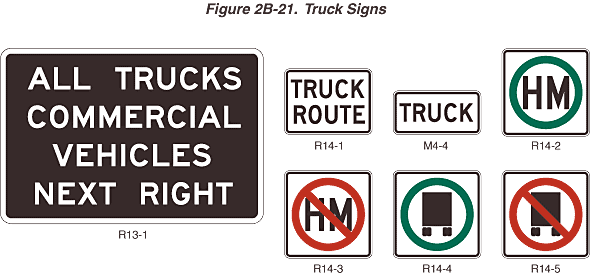

Figure 2B-21. Truck Signs

This figure shows seven truck signs.

R13-1 is shown as a horizontal rectangular black sign with a white border and the words "ALL TRUCKS COMMERCIAL VEHICLES NEXT RIGHT" in white on four lines.

R14-1 is shown as a horizontal rectangular white sign with a black border and the words "TRUCK ROUTE" in black on two lines.

M4-4 is shown as a horizontal rectangular white sign with a black border and the word "TRUCK" in black.

R14-2 is shown as a square white sign with a black border and the black letters "HM" inside a green circle.

R14-3 is shown as a square white sign with a black border and the black letters "HM" inside a red circle with a red slash across the letters.

R14-4 is shown as a square white sign with a black border and a black symbol of the back of a truck inside a green circle.

R14-5 is shown as a square white sign with a black border and a black symbol of the back of a truck inside a red circle with a red slash across it.
