2009 Edition Part 2 Figure 2B-16. ONE WAY Signing for Divided Highways with Median Widths Narrower Than 30 Feet
Figure 2B-16. ONE WAY Signing for Divided Highways with Median Widths Narrower Than 30 Feet
This figure shows ONE WAY signing for divided highways that have medians narrower than 30 feet.

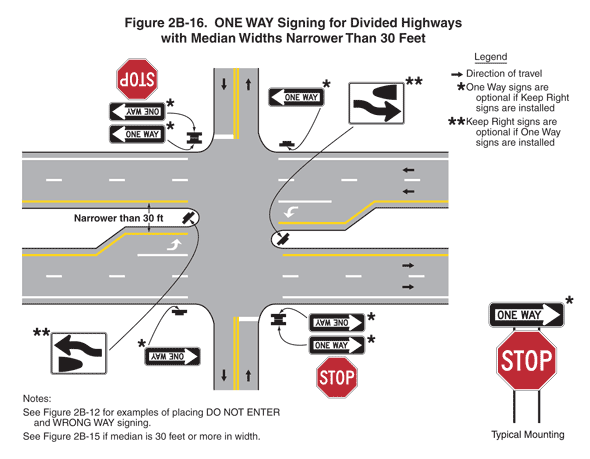

The figure shows a vertical two-lane roadway intersecting a horizontal highway with two eastbound lanes, a median, and two westbound lanes. A legend shows a black arrow indicating the direction of travel in the lanes, one asterisk indicating optional use, and two asterisks indicating that Keep Right signs are optional if ONE WAY signs are installed. Notes at the bottom of the figure state: "See Figure 2B-12 for examples of placing DO NOT ENTER and WRONG WAY signing. See Figure 2B-15 if median is 30 feet or more in width."
The vertical two-lane roadway is shown with a solid double yellow line dividing the two lanes, except through the intersections, and solid white stop lines across the approach lane on each side of the intersections with the divided highway lanes. Black arrows show that the direction of travel is one lane in each direction on the vertical roadway. Between the eastbound and westbound lanes of the horizontal roadway, the width of the median between the solid yellow edge lines is shown as a dimension narrower than 30 feet. All signs except the STOP signs are shown with an asterisk indicating"optional."
The horizontal highway is composed of two through lanes and a left-turn lane in each direction. A solid white line is shown marked on the right edge of each side of the highway. A solid yellow line is shown marked on the left edge of each side of the highway next to the median. A broken white line is shown separating the two eastbound through lanes as well as the two westbound through lanes. The left-turn lane is shown divided from the same direction through lanes by a solid white line and from the median by a solid yellow line. A white arrow curving up and to the left is shown marked on the pavement of each left-turn lane. Black arrows show that the direction of travel is one way west to east in the bottom two lanes and east to west in the upper two lanes.
At the bottom of the page and to the right, an illustration is labeled "Typical Mounting." It is shown as a right-pointing ONEWAY sign above a STOP sign.
At the bottom of the figure on the vertical roadway and in advance of the intersection with the eastbound lanes, a sign assembly is shown to the right of the northbound travel lane. It is shown as a ONE WAY sign pointing east (to the right) above a STOP sign. These signs are shown facing south. A second ONE WAY sign pointing east (to the left) is shown mounted back-to-back with the first one and facing north.
On the far side of the eastbound lanes and on the median, a Keep Right symbol sign is shown with a reverse curve arrow to the right of a downward facing bullet shape. It is shown at a 45-degree angle on the median and facing northwest. Two asterisks are shown next to it.
On the far side of the westbound lanes, a sign is shown to the right of the northbound travel lane. It is shown as a ONE WAY sign pointing west (to the left) and facing south. An asterisk indicating "optional" is shown next to it.
The same series of ONE WAY, STOP, Divided Highway Crossing,and Keep Right symbol signs are shown for the southbound lanes of the vertical roadway.
