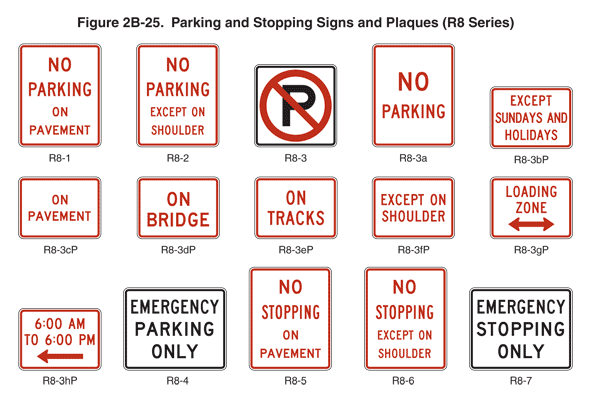

2009 Edition Part 2 Figure 2B-25. Parking and Stopping Signs and Plaques (R8 Series)
Figure 2B-25. Parking and Stopping Signs and Plaques (R8Series)
This figure shows 15 parking and stopping signs and plaques.
R8-1 is shown as a vertical rectangular white sign with a red border and the words "NO PARKING" in large red letters on the top two lines above the words "ON PAVEMENT" in red on the next two lines.
R8-2 is shown as a vertical rectangular white sign with a red border and the words "NO PARKING" in large red letters on the top two lines above the words "EXCEPT ON SHOULDER" in red on the next two lines.
R8-3 is shown as a square white sign with a black border and the letter "P" in black inside a red circle with a diagonal red slash through the "P."
R8-3a is shown as a vertical rectangular white sign with a red border and the words "NO PARKING" in red on two lines.
R8-3bP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "EXCEPT SUNDAYS &HOLIDAYS" in red on three lines.
R8-3cP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "ON PAVEMENT" in red on two lines.
R8-3dP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "ON BRIDGE" in red on two lines.
R8-3eP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "ON TRACKS" in red on two lines.
R8-3fP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "EXCEPT ONSHOULDER" in red on two lines.
R8-3gP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "LOADING ZONE" in red on two lines above a two-direction horizontal red arrow.
R8-3hP is shown as a horizontal rectangular white supplemental plaque with a red border and the words "6:00 AM TO 6:00PM" in red on two lines above a horizontal red arrow pointing left.
R8-4 is shown as a horizontal rectangular white sign with a black border and the words "EMERGENCY PARKING ONLY" in black on three lines.
R8-5 is shown as a vertical rectangular white sign with a red border and the words "NO STOPPING" in large red letters on the top two lines above the words "ON PAVEMENT" in red on the next two lines.
R8-6 is shown as a vertical rectangular white sign with a red border and the words "NO STOPPING" in large red letters on the top two lines above the words "EXCEPT ON SHOULDER" in red on the next two lines.
R8-7 is shown as a horizontal rectangular white sign with a black border and the words "EMERGENCY STOPPING ONLY" in black on three lines.
