2009 Edition Part 2 Figure 2B-28. Ramp Metering Signs

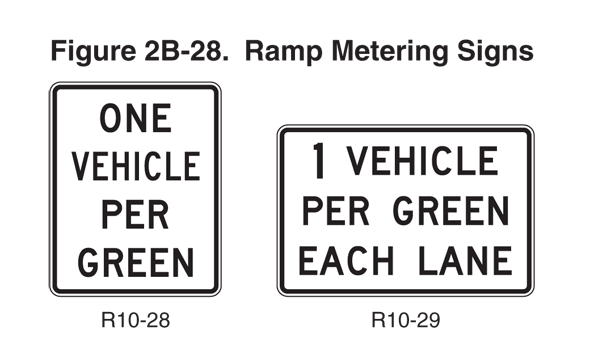

Figure 2B-28. Ramp Metering Signs
This figure shows two ramp metering signs. They are shown as white signs with black borders and legends.
R10-28 is shown as a vertical rectangular sign with the words "ONE VEHICLE PER GREEN" on four lines.
R10-29 is shown as a horizontal rectangular sign with the words "1 VEHICLE PER GREEN EACH LANE" on four lines.
