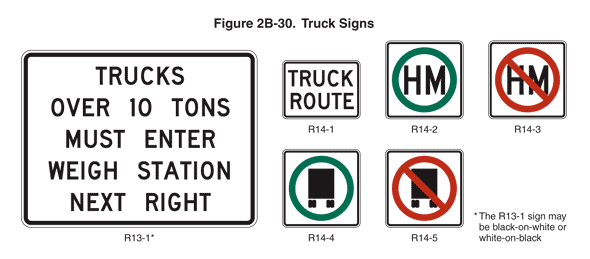

2009 Edition Part 2 Figure 2B-30. Truck Signs
Figure 2B-30. Truck Signs
This figure shows six truck signs.
R13-1 is shown as a horizontal rectangular white sign with a black border and the words "TRUCKS OVER 10 TONS MUST ENTER WEIGH STATIONNEXT RIGHT" in black on five lines. A note indicates that the R13-1 sign may be black-on-white or white-on-black.
R14-1 is shown as a horizontal rectangular white sign with a black border and the words "TRUCKROUTE" in black on two lines.
R14-2 is shown as a square white sign with a black border and the black letters "HM" inside a green circle.
R14-3 is shown as a square white sign with a black border and the black letters "HM" inside a red circle with a diagonal red slash across the letters.
R14-4 is shown as a square white sign with a black border and a black symbol of the back of a truck inside a green circle.
14-5 is shown as a square white sign with a black border and a black symbol of the back of a truck inside a red circle with a diagonal red slash across it.
