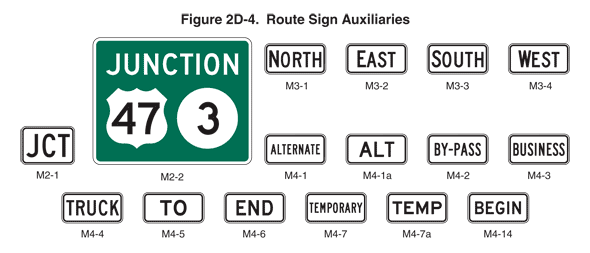

2009 Edition Part 2 Figure 2D-4. Route Sign Auxiliaries
Figure 2D-4. Route Sign Auxiliaries
This figure shows 16 route sign auxiliary signs. They are horizontal rectangular white signs with black borders and legends, except for M2-2.
M2-1 is shown with the legend "JCT."
M2-2 is shown as a green sign with a white border. It shows the word "JUNCTION" in white on the top line and, on the bottom line, the black numeral "47" is shown on a white U.S. shield to the left of a black numeral "3" shown on a white disk.
M3-1 is shown with the word "NORTH" with the "N" slightly larger than the rest of the word.
M3-2 is shown with the word "EAST" with the "E" slightly larger than the rest of the word.
M3-3 is shown with the word "SOUTH" with the "S" slightly larger than the rest of the word.
M3-4 is shown with the word "WEST" with the "W" slightly larger than the rest of the word.
M4-1 is shown with the word "ALTERNATE."
M4-1a is shown with the word "ALT."
M4-2 is shown with the word "BY-PASS."
M4-3 is shown with the word "BUSINESS."
M4-4 is shown with the word "TRUCK."
M4-5 is shown with the word "TO."
M4-6 is shown with the word "END."
M4-7 is shown with the word "TEMPORARY."
M4-7a is shown with the word "TEMP."
M4-14 is shown with the word "BEGIN."
