2009 Edition Part 2 Figure 2E-8. Diagrammatic Guide Signs for a Two-Lane Exit to the Right with an Option Lane

Full-size image of Figure 2E-8

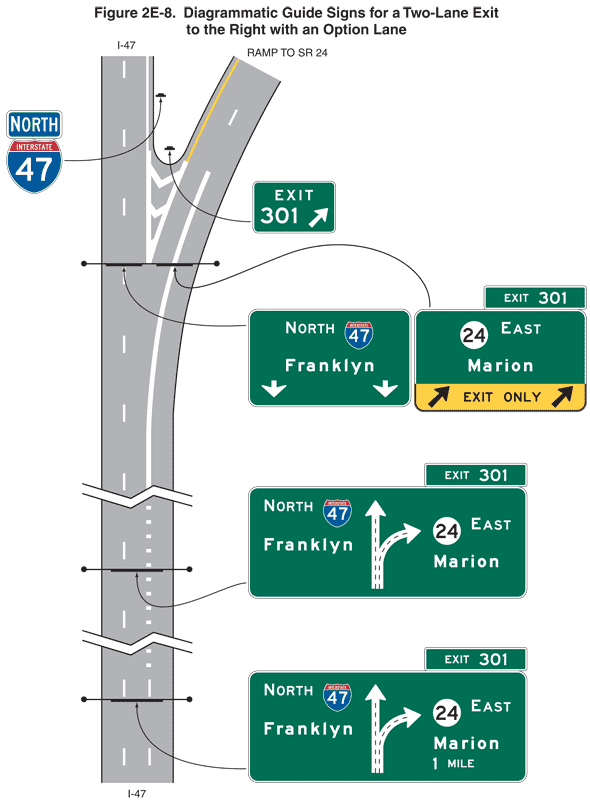

Figure 2E-8. Diagrammatic Guide Signs for a Two-Lane Exit to the Right with an Option Lane

This figure shows diagrammatic guide signs for a two-lane exit to the right with an option lane.

The figure shows segments of one direction of a vertical highway labeled I-47 at the bottom of the figure, depicted with three lanes, with the travel direction from the bottom to the top of the figure. At the bottom of the figure, the lanes are separated from each other by broken white lines. The broken white line between the center and right lanes is then shown changing to a dotted wide white lane. Near the top of the figure, the center lane divides, and this lane and the right lane (labeled RAMP TO SR 24) are shown separated by a solid wide white line and curving to the right. The left lane and part of the center lane (labeled I-47) are shown continuing straight and are shown separated by broken white lines.

Five horizontal rectangular green signs and sign assemblies with white legends and borders are shown along the highway, as well as two route sign assemblies.

The first sign is shown near the bottom of the figure where the lanes are divided by broken white lines. It is shown extending from the middle of the left lane, over the center lane, and to the middle of the right lane of the highway. It is shown with a plan view of the exit in the middle of the sign, consisting of a two-headed arrow with the two shafts emanating from a combined base, with one shaft pointed straight ahead and the other curving up and to the right. Each shaft is shown with a dashed black line along the middle of the shaft from the base to the start of the arrowhead:

  • To the left of the plan view, on the top line, the word "NORTH" is shown to the left of a red and blue Interstate route shield on which the white numerals "47" are shown, and the word "Franklyn" is shown on the bottom line.
  • To the right of the plan view, on the top line, a white disk is shown on which the black numeral "24" is shown to the left of the word "EAST," the word "Marion" is shown on the middle line, and the words "1 MILE" are shown on the bottom line.
  • A smaller horizontal rectangular green plaque is shown above the top right side of the sign. It shows the words "EXIT 301."

Just north of the first sign assembly, the broken white line between the center and right lanes is shown changing to a wide dotted white line. The same sign assembly is shown further north on the highway beyond this point. The sign assembly is the same as the first, except without the distance on the third line of the sign.

North of the second sign assembly, the dotted wide white line between the center and right lanes is shown changing to a solid wide white line. At the theoretical gore, a sign assembly is shown located over the highway. The assembly consists of two signs in a horizontal array:

  • The left sign is shown located above the broken white line that separates the left and center lanes. It shows, on the top line, the word "NORTH" to the left of a red and blue Interstate route shield on which the white numerals "47" are shown, the word "Franklyn" on the middle line, and two downward-pointing vertical white arrows with short shafts on the bottom line.
  • The right sign is shown located above the solid white line that separates the center and right lanes. It shows, on the top line, a white disk on which the black numerals "24" are shown to the left of the word "EAST," the word "Marion" on the middle line, and a horizontal rectangular yellow panel with a black border and legend on the bottom line. A short diagonal black arrow pointing up and to the right is shown to the left of the words "EXIT ONLY" to the left of another short diagonal black arrow pointing up and to the right on the yellow panel.
  • A smaller horizontal rectangular green plaque is shown above the top right side of the sign. It shows the words "EXIT 301."

A smaller horizontal rectangular sign is shown on the gore between the lanes that curve to the right and the lanes that continue straight ahead. It shows the word "EXIT" on the top line and the numerals "301" to the left of a large white diagonal arrow with a short shaft pointing up and to the right on the bottom line.

At the top of the figure, a sign is shown to the right of the lanes that continue straight ahead. It is shown as a red and blue Interstate route shield on which the white numerals "47" are shown. Above it, a plaque is shown with the word "NORTH" in white letters and a white border on a blue background.
