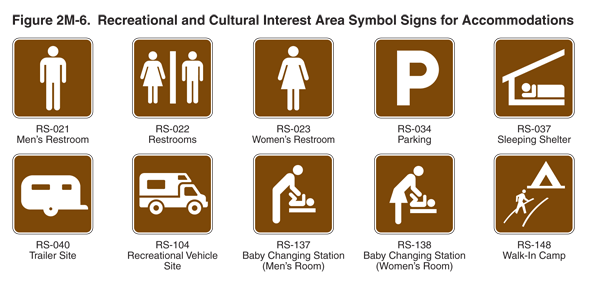

2009 Edition Part 2 Figure 2M-6. Recreational and Cultural Interest Area Symbol Signs for Accommodations
Figure 2M-6. Recreational and Cultural Interest Area Symbol Signs for Accommodations
This figure shows 10 recreational and cultural interest area symbol signs for accommodations. They are shown as square brown symbol signs with white borders and legends.
RS-021 is shown with a stylized symbol of a man. It is labeled "Men's Restroom."
RS-022 is shown with the stylized symbol of a woman in a dress to the left of a vertical line to the left of a stylized symbol of a man. It is labeled "Restrooms."
RS-023 is shown with a stylized symbol of a woman in a dress. It is labeled "Women's Restroom."
RS-034 is shown with a large letter "P." It is labeled "Parking."
RS-037 is shown with a symbol of a person sleeping in a roofed structure. It is labeled "Sleeping Shelter."
RS-040 is shown with a symbol of a camper trailer. It is labeled "Trailer Site."
RS-104 is shown with a symbol of a camper truck. It is labeled "Recreational Vehicle Site."
RS-137 is shown with a symbol of a man bending forward over a symbol of a baby on a horizontal surface. It is labeled "Baby Changing Station (Men's Room)."
RS-138 is shown with a symbol of a woman in a dress bending forward over a symbol of a baby on a horizontal surface. It is labeled "Baby Changing Station (Women's Room)."
RS-148 is shown with a symbol of a person walking on a trail toward a symbol of a tent. It is labeled "Walk-In Camp."
