2009 Edition Part 5 Figure 5C-2. Other Warning Signs and Plaques on Low-Volume Roads
Figure 5C-2. Other Warning Signs and Plaques on Low-Volume Roads

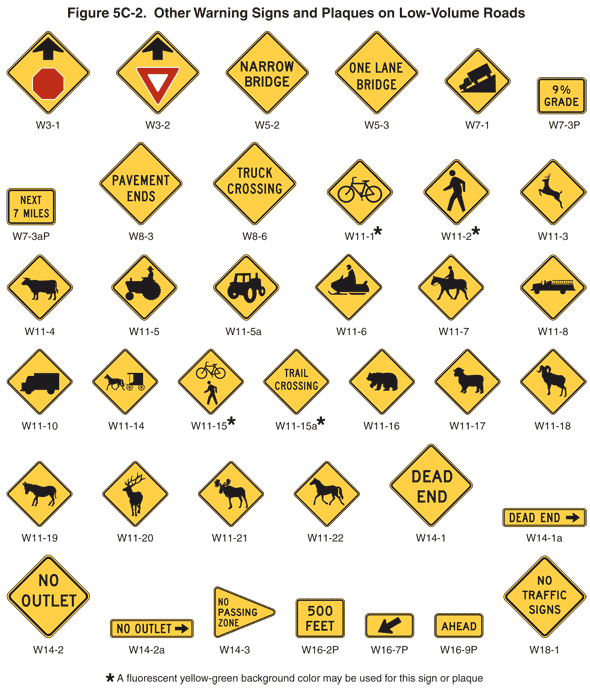

This figure shows 38 other warning signs and plaques for low-volume roads. They are shown as diamond-shaped or horizontal rectangular yellow signs with black borders and legends.
W3-1 is shown as a diamond-shaped sign with an upward-pointing black arrow above an octagonal red STOP sign symbol.
W3-2 is shown as a diamond-shaped sign with an upward-pointing black arrow above a downward-pointing equilateral triangular red and white YIELD sign symbol.
W5-2 is shown as a diamond-shaped sign with the words "NARROW BRIDGE" on two lines.
W5-3 is shown as a diamond-shaped sign with the words "ONE LANE BRIDGE" on two lines.
W7-1 is shown as a diamond-shaped sign with a symbol of a truck pointing to the left and down on a hill that slopes up from the left to right.
W7-3P is shown as a horizontal rectangular plaque with the words "9% GRADE" on two lines.
W7-3aP is shown as a horizontal rectangular plaque with the words "NEXT 7 MILES" on two lines.
W8-3 is shown as a diamond-shaped sign with the words "PAVEMENT ENDS" on two lines.
W8-6 is shown as a diamond-shaped sign with the words "TRUCK CROSSING" on two lines.
W11-1 is shown as a diamond-shaped sign with a symbol of a left-facing bicycle. A note states: "A fluorescent yellow-green background color may be used for this sign or plaque."
W11-2 is shown as a diamond-shaped sign with a symbol of a left-facing walking person. A note states: "A fluorescent yellow-green background color may be used for this sign or plaque."
W11-3 is shown as a diamond-shaped sign with a symbol of a left-facing deer.
W11-4 is shown as a diamond-shaped sign with a symbol of a left-facing cow.
W11-5 is shown as a diamond-shaped sign with a symbol of a left-facing tractor and driver.
W11-5a is shown as a diamond-shaped sign with a symbol of a tractor.
W11-6 is shown as a diamond-shaped sign with a symbol of a left-facing snow mobile and driver.
W11-7 is shown as a diamond-shaped sign with a symbol of a left-facing horse and rider.
W11-8 is shown as a diamond-shaped sign with a symbol of a left-facing fire engine.
W11-10 is shown as a diamond-shaped sign with a symbol of a left-facing box truck.
W11-14 is shown as a diamond-shaped sign with a symbol of a left-facing horse and buggy.
W11-15 is shown as a diamond-shaped sign with a symbol of a left-facing bicycle above a symbol of a left-facing walking person. A note states: "A fluorescent yellow-green background color may be used for this sign or plaque."
W11-15a is shown as a diamond-shaped sign with the words "TRAIL CROSSING" on two lines. A note states: "A fluorescent yellow-green background color may be used for this sign or plaque."
W11-16 is shown as a diamond-shaped sign with a symbol of a left-facing bear.
W11-17 is shown as a diamond-shaped sign with a symbol of a left-facing sheep.
W11-18 is shown as a diamond-shaped sign with a symbol of a left-facing mountain goat.
W11-19 is shown as a diamond-shaped sign with a symbol of a left-facing donkey.
W11-20 is shown as a diamond-shaped sign with a symbol of a left-facing elk.
W11-21 is shown as a diamond-shaped sign with a symbol of a left-facing moose.
W11-22 is shown as a diamond-shaped sign with a symbol of a left-facing wild horse.
W14-1 is shown as a diamond-shaped sign with the words "DEAD END" on two lines.
W14-1a is shown as a horizontal rectangular sign with the words "DEAD END" to the left of a right-pointing arrow on one line.
W14-2 is shown as a diamond-shaped sign with the words "NO OUTLET" on two lines.
W14-2a is shown as a horizontal rectangular sign with the words "NO OUTLET" to the left of a right-pointing arrow on one line.
W14-3 is shown as a pennant-shaped isosceles triangle with its longer axis horizontal and pointing to the right with the words "NO PASSING ZONE" on three lines.
W16-2P is shown as a horizontal rectangular plaque with the words "500 FEET" on two lines.
W16-7P is shown as a horizontal rectangular plaque with a black arrow pointing down and to the left.
W16-9P is shown as a horizontal rectangular plaque with the word "AHEAD."
W18-1 is shown as a diamond-shaped sign with the words "NO TRAFFIC SIGNS" on three lines.
